• (2) aux pwr outlets in instrument panel
• (4) air registers w/positive shut-off
• 3-blink lane change signal
• Color-keyed scuff plates
• Dash-top tray
• Driver & front passenger grab handles
• Dual color-keyed coat hooks
• Front door operated dome lamp w/time delay off & IP switch
• Front passenger-side roof ride handle
• Front/rear map lamps
• Glove Box
• Instrument panel mounted storage bin & trash bag hook
• Oil minder system
• Overhead console -inc: storage bins for garage door opener & sunglasses
• Rear seating roof ride handles
• SecuriLock anti-theft ignition
• Tilt/telescoping steering column

• (2) front tow hooks
• 12.5K trailer hitch receiver -inc: 2" hitch
• 157-amp HD alternator
• 2-ton mechanical jack
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• Front stabilizer bar
• HD gas shock absorbers
• Mono-beam front axle w/coil spring suspension
• Pwr 4-wheel disc brakes w/vacuum boost
• Pwr steering w/steering damper
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector

• 4-wheel anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Driver & front passenger airbags
• Driver & front passenger side air bag/curtain
• Hill start assist control
• Rear door child safety locks
• SOS post crash alert system
• Tire pressure monitoring system
• Trailer sway control

6.7L 32-VALVE POWER STROKE V8 DIESEL ENGINE

• diesel emission fluid system
• engine exhaust braking in tow/haul mode
• 750 CCA 78-AH dual batteries
• intelligent oil life minder
• 14K trailer hitch receiver w/2.5" trailer hitch & 2" reducer sleeve

• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• A/C
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Immobilizer
• Passenger Vanity Mirror
• Front Reading Lamps
• Rear Reading Lamps
• ABS
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Child Safety Locks
• Tire Pressure Monitor
• Requires Subscription

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 27.8
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6290
• Curb Weight - Front (lbs): 4705
• Curb Weight - Front (lbs): 4093
• Curb Weight - Rear (lbs): 3083
• Curb Weight - Rear (lbs): 2955
• Gross Vehicle Weight Rating Cap (lbs): 11300
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1785
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3950
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2975
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Leaf Spring
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 6290
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TCH
• Rear Tire Order Code: TCH
• Spare Tire Order Code: - TBD -
• Front Tire Size: LT275/65R18E
• Rear Tire Size: LT275/65R18E
• Spare Tire Size: LT275/70R18E
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Spare Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels

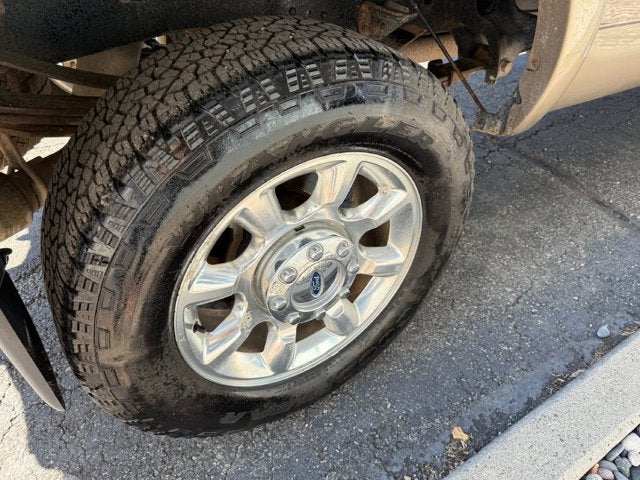

• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: 20.4
• Turning Diameter - Curb to Curb (ft): 56.5
• Turning Diameter - Wall to Wall (ft): 58.4
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 37.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 172.4
• Length, Overall w/o rear bumper (in): 263.0
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 80.8
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.2
• Cab to Axle (in): 56.3
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2

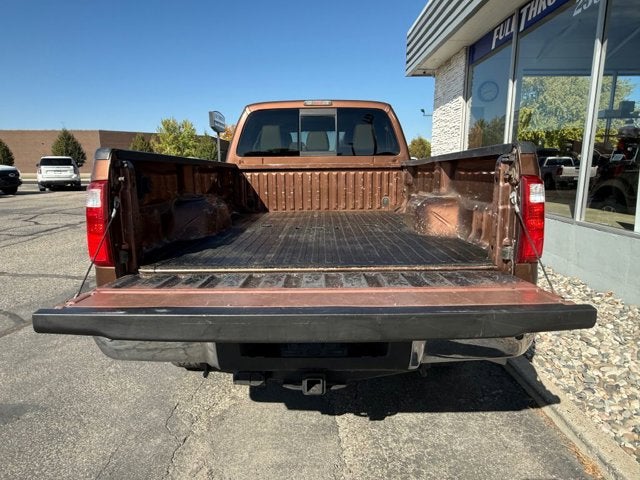

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.0
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.3
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.6
• Summary

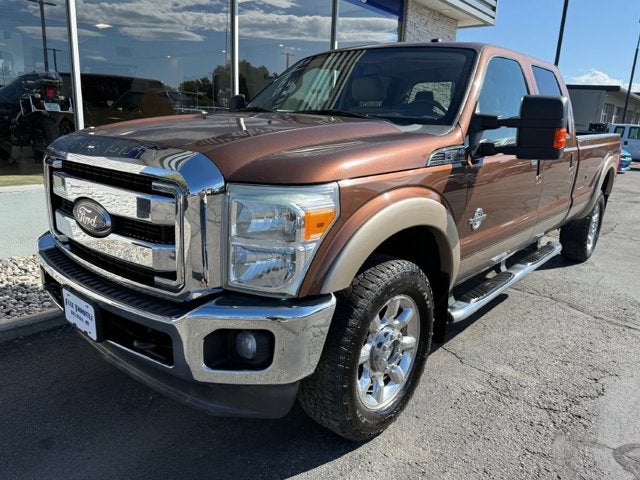

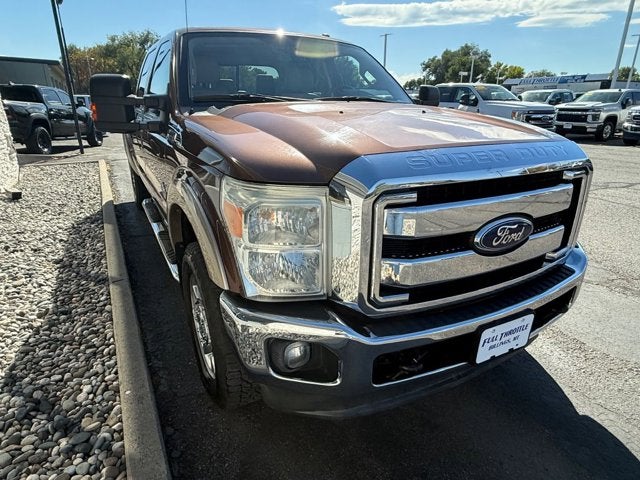

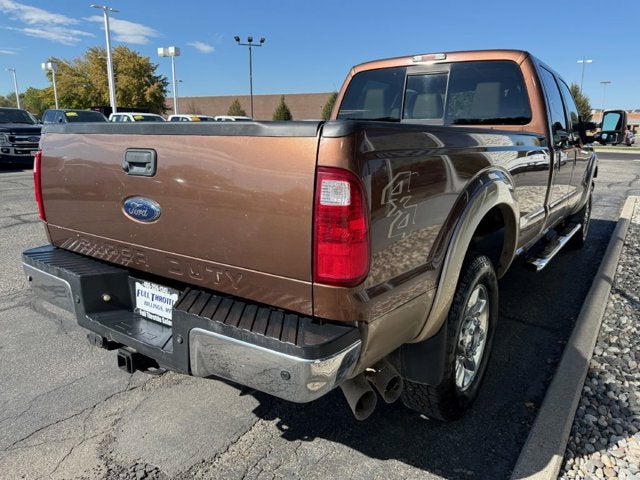

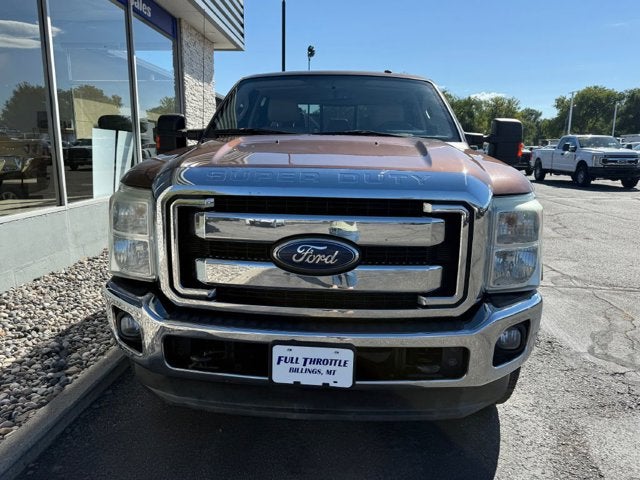

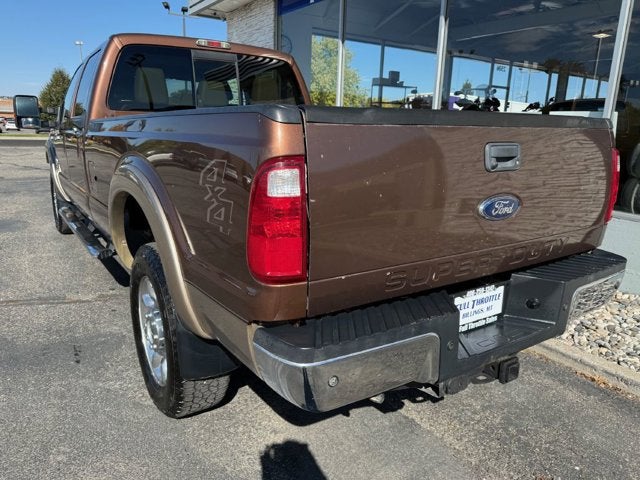

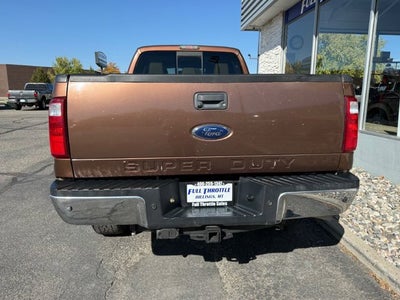

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: Crew Cab 8'
• Body Code: 172" WB
