• Cigarette lighter
• Front/rear assist handles
• Glove box

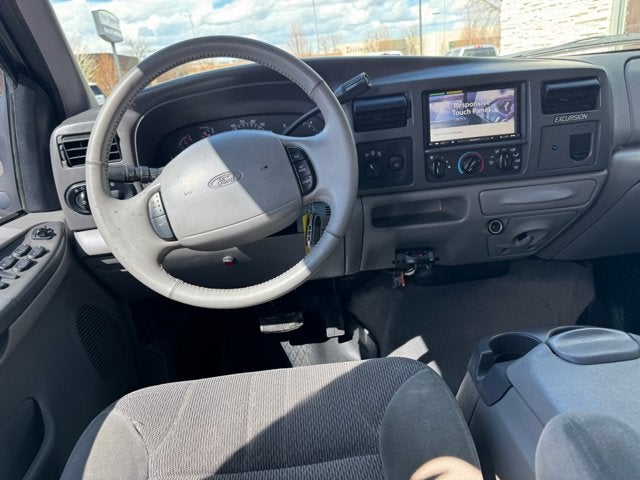

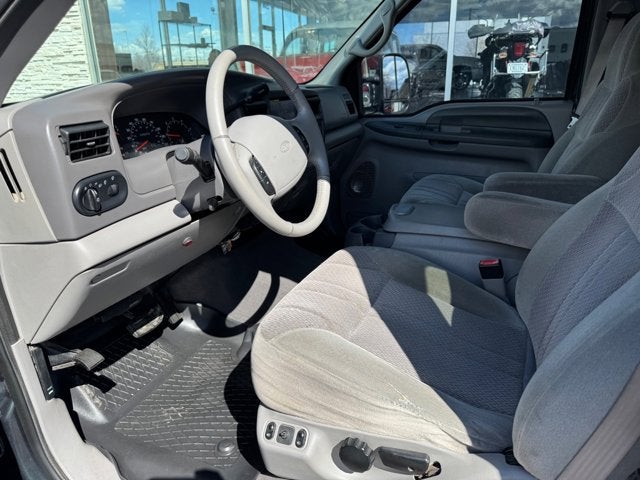

• Leather steering wheel
• Pwr door locks
• Rear window defroster
• Speed control
• Tilt steering column

• (2) front tow hooks
• 130 amp alternator
• 3.73 axle ratio
• Four wheel drive
• Front stabilizer bar
• Full size spare tire
• Pwr 4-wheel disc brakes
• Pwr steering

• 4-wheel anti-lock braking system
• Driver & front passenger airbags

6.8L (415) SOHC SEFI V10 ENGINE

• (STD)

• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Power Steering
• 4-Wheel Disc Brakes
• Luggage Rack
• Running Boards/Side Steps
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Pass-Through Rear Seat
• Leather Steering Wheel
• Adjustable Steering Wheel
• Cruise Control
• Power Windows
• Keyless Entry
• Security System
• A/C
• Rear Defrost
• AM/FM Stereo
• Cassette
• CD Player
• Power Outlet
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Rear Reading Lamps
• Driver Air Bag
• Passenger Air Bag
• Child Safety Locks

• Vehicle

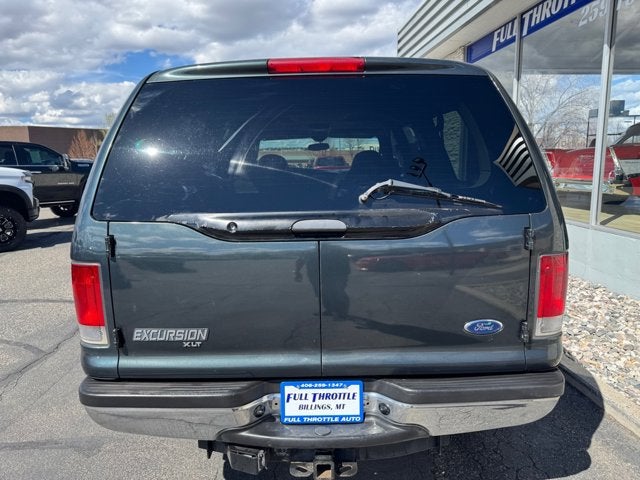

• Rear Door Type: Tri-Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4700
• Gross Axle Wt Rating - Rear (lbs): 5250
• Curb Weight - Front (lbs): 3575
• Curb Weight - Rear (lbs): 3615
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 17,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Single-Stage Leaf
• Suspension Type - Rear: Single-Stage Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5250
• Axle Type - Front: Dana 50 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 9900
• Axle Capacity - Rear (lbs): 7000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.13 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.20 x - TBD -
• Tires
• Front Tire Order Code: T47
• Rear Tire Order Code: T47
• Spare Tire Order Code: T47

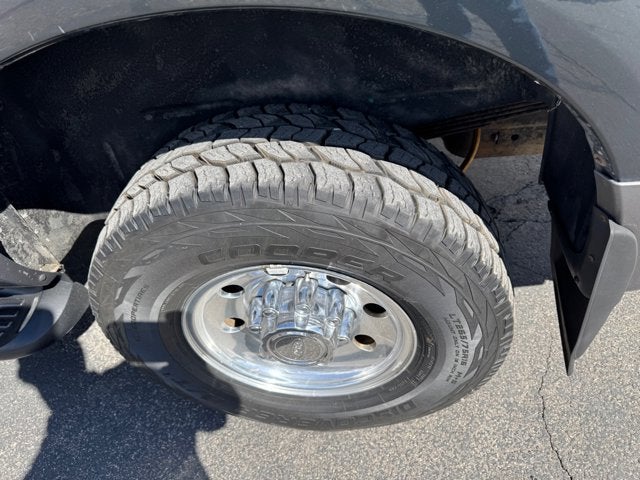

• Front Tire Size: LT265/75R16D
• Rear Tire Size: LT265/75R16D
• Spare Tire Size: LT265/75R16D
• Front Tire Capacity (lbs): 3000
• Rear Tire Capacity (lbs): 3000
• Spare Tire Capacity (lbs): 3000
• Revolutions/Mile @ 45 mph - Front: 658
• Revolutions/Mile @ 45 mph - Rear: 658
• Revolutions/Mile @ 45 mph - Spare: 658
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 50.4
• Turning Diameter - Wall to Wall (ft): 53.0
• Frame
• Frame Type: Ladder w/BlockerBeam
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 44
• Fuel Tank Location: Aft-of-axle
• Exterior Dimensions
• Wheelbase (in): 137.1
• Length, Overall w/rear bumper (in): 226.7
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 80.2
• Overhang, Front (in): 37.4
• Overhang, Rear w/bumper (in): 52.3
• Ground to Top of Load Floor (in): - TBD -
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 8.1
• Rear Door Opening Height (in): 38.1
• Rear Door Opening Width (in): 55.8
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 100.9
• Cargo Area Length @ Floor to Seat 2 (in): 64.0
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.2
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 146.4
• Cargo Volume to Seat 2 (ft³): 100.7
• Cargo Volume to Seat 3 (ft³): 48.6
• Interior Dimensions
• Passenger Capacity: 9
• Front Head Room (in): 41.0
• Front Leg Room (in): 42.3
• Front Shoulder Room (in): 68.3
• Front Hip Room (in): 67.5

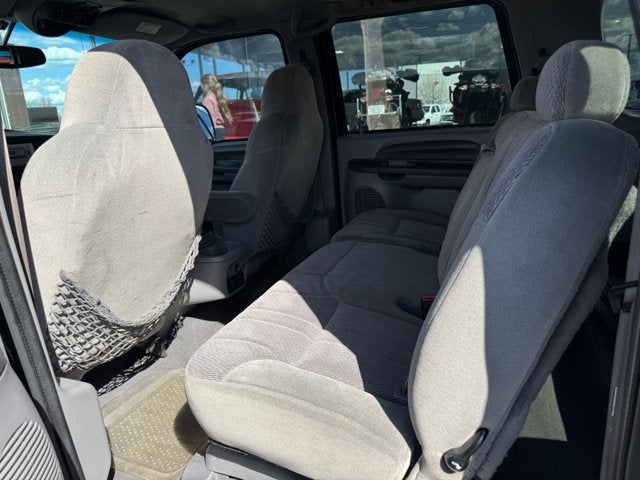

• Second Head Room (in): 41.1
• Second Leg Room (in): 40.5
• Second Shoulder Room (in): 67.0
• Second Hip Room (in): 66.9
• Third Head Room (in): 38.6
• Third Leg Room (in): 39.0
• Third Shoulder Room (in): 64.9
• Third Hip Room (in): 52.5
• Summary

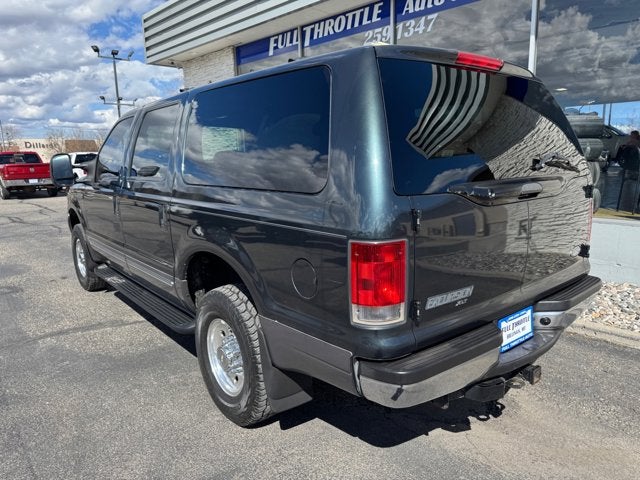

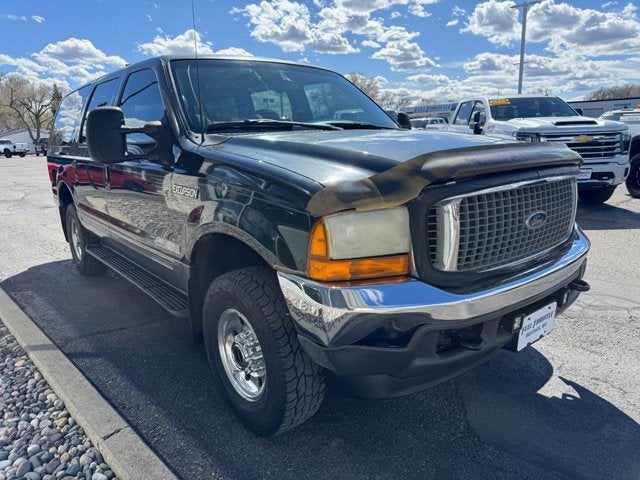

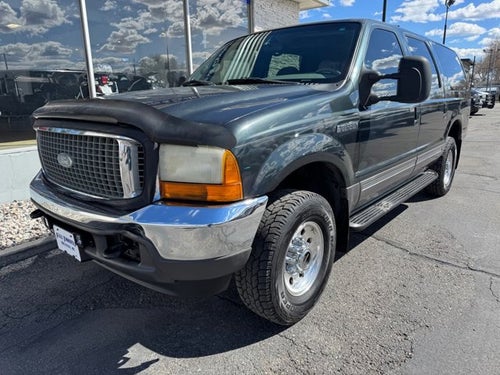

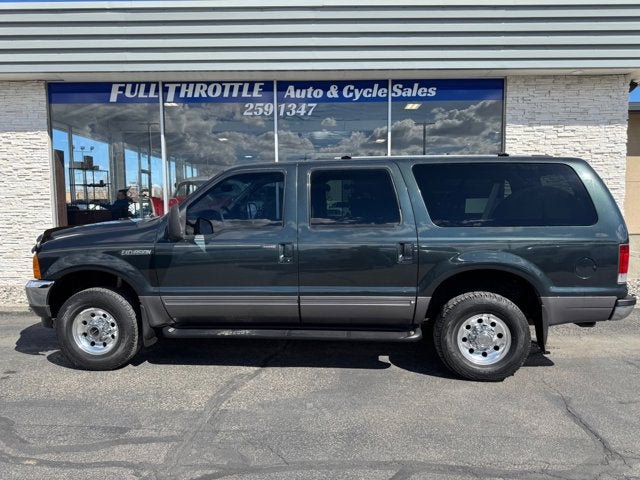

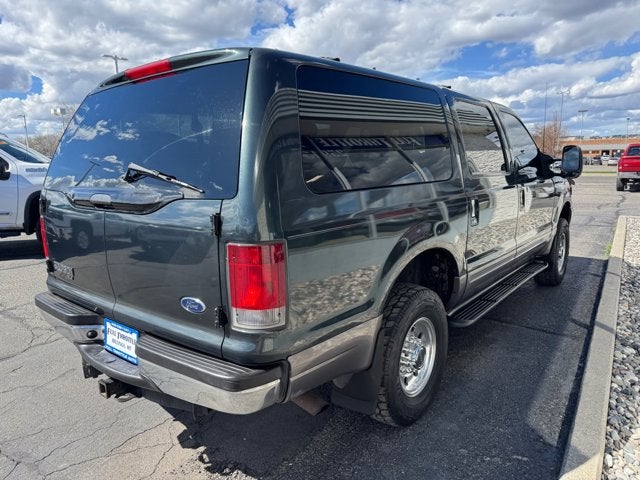

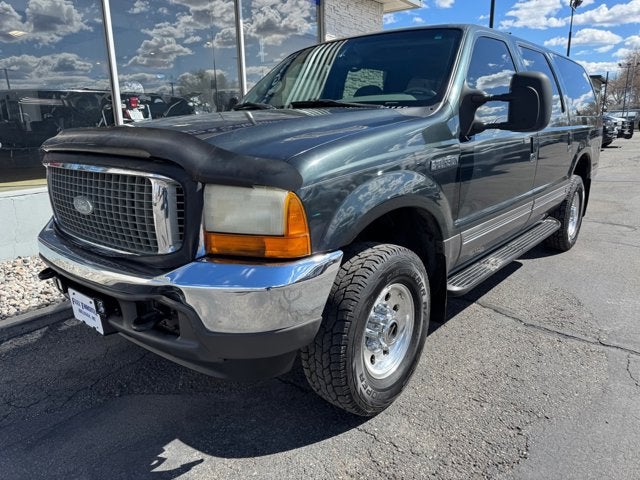

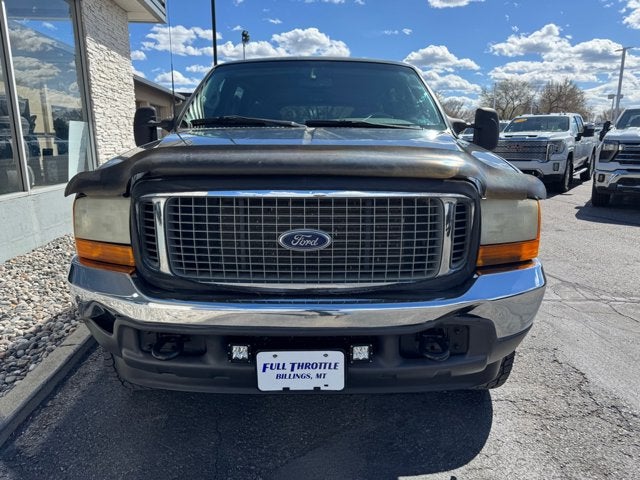

• Vehicle Name: Ford Excursion
• Body Style: 4 door
• Body Code: 137" WB
